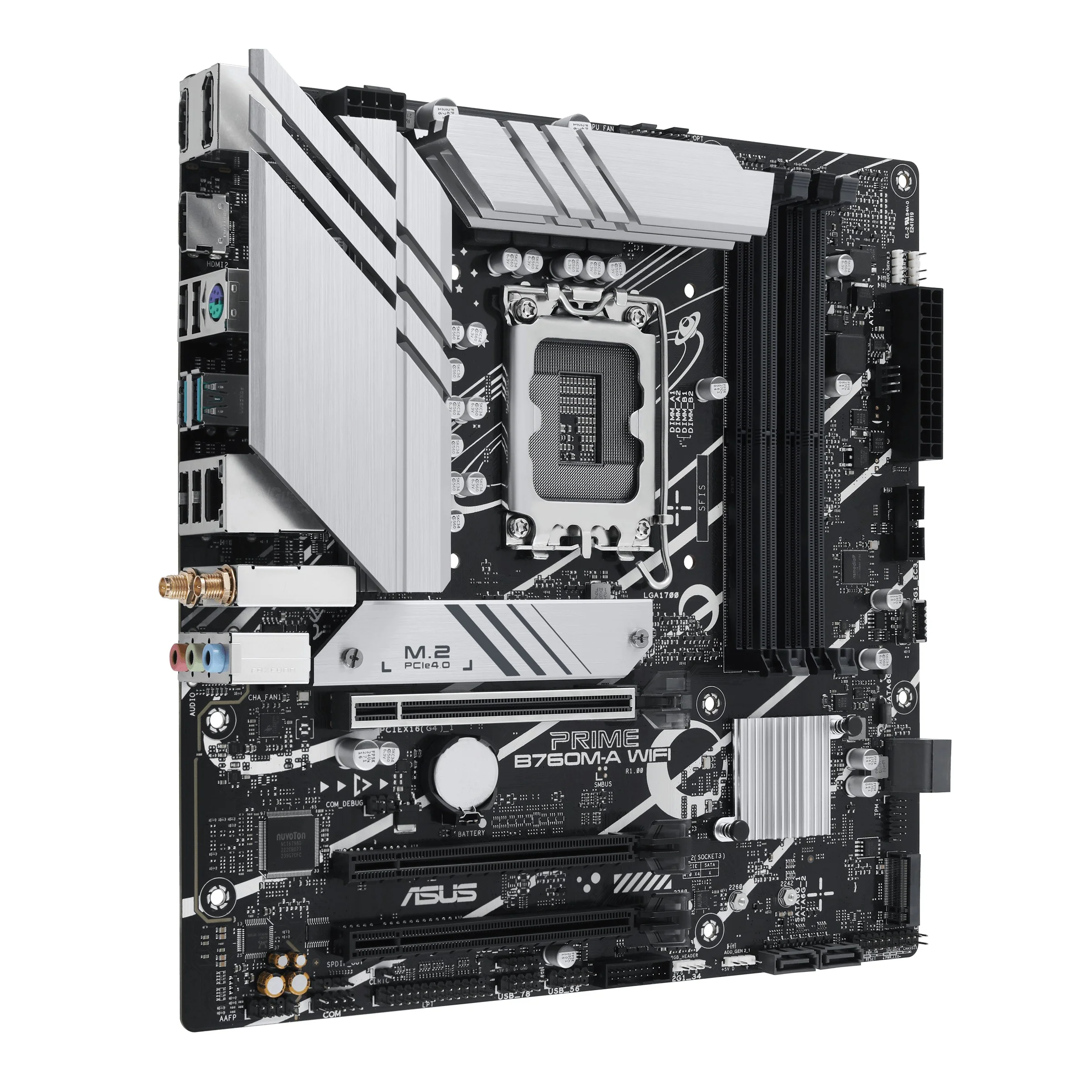

Asus Prime B760M-A WiFi-CSM DDR5 Intel Motherboard
Asus Prime B760M-A WiFi-CSM DDR5 Intel Motherboard
Intel® B760 (LGA 1700) mATX mortheboard with PCIe 4.0, DDR5, two M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, Dual HDMI™, SATA 6 Gbps, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®, Aura Sync
- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- Intel® LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel® processors
- Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®
- Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
- ASUS Control Center Express: Real-time IT monitoring and management software for enhanced data protection
| ASUS PRIME B760M-A WIFI-CSM Specifications | |
|---|---|
| CPU Support | Intel® LGA1700 for 14th/13th/12th Gen Core, Pentium® Gold, Celeron® Processors Supports Intel® Turbo Boost 2.0 & Turbo Boost Max 3.0 |
| Chipset | Intel® B760 |
| Memory | 4 x DIMM slots, Max. 128GB DDR5 Speeds: 4800–7200+(OC) MHz Dual Channel, Non-ECC, Un-buffered Supports Intel® XMP, OptiMem II |
| Graphics | 1 x DisplayPort (max 4K@60Hz) 2 x HDMI 2.1 ports (max 4K@60Hz) |
| Expansion Slots | CPU: 1 x PCIe 4.0 x16 B760 Chipset: 1 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 4.0 x16 (x1 mode) |
| Storage | 2 x M.2 slots, 4 x SATA 6Gb/s ports Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10 |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| Wireless & Bluetooth | Wi-Fi 6 (2x2 802.11 a/b/g/n/ac/ax), 2.4/5GHz, Bluetooth v5.2 |
| USB Ports | Rear (6): 2 x USB 3.2 Gen 2 (Type-A), 4 x USB 2.0 (Type-A) Front (10): 2 x USB 3.2 Gen 1 headers (4 ports), 1 x USB 3.2 Gen 1 Type-C, 2 x USB 2.0 headers (4 ports), 1 x USB 2.0 header (1 port) |
| Audio | Realtek 7.1 Surround HD Audio Supports 24-Bit/192 kHz playback, Jack-detection, Multi-streaming, Front Panel Jack-retasking Audio Shielding, Premium capacitors, Dedicated PCB layers |
| Back Panel I/O | 2 x USB 3.2 Gen 2 (Type-A), 4 x USB 2.0 (Type-A) 1 x DisplayPort, 2 x HDMI, 1 x Wi-Fi Module, 1 x Realtek 2.5Gb Ethernet 3 x Audio jacks, 1 x PS/2 combo port |
| Internal I/O Connectors | Fan: 1 x CPU Fan, 1 x CPU OPT Fan, 2 x Chassis Fan headers Power: 1 x 24-pin Main Power, 1 x 8-pin +12V Power Storage: 2 x M.2 slots, 4 x SATA 6Gb/s ports USB: as above Misc: 3 x Addressable Gen 2 headers, 1 x Aura RGB header, 1 x Clear CMOS, 1 x COM, 1 x AAFP, 1 x LPT, 1 x S/PDIF Out, 1 x SPI TPM, 1 x 20-3 pin System Panel with Chassis Intrude |
| Special Features | ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless-Steel Back I/O) ASUS Q-Design (Q-DIMM, Q-LED Core, Q-Slot) ASUS Thermal Solution (M.2 & VRM heatsinks) ASUS EZ DIY (ProCool) Aura Sync (RGB & Addressable Gen 2 headers) |
| Software Features | Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 2+, Power Saving) AI Suite 3 (Digi+ VRM, PC Cleaner), ASUS CPU-Z, MyASUS, Norton Deluxe 60-day trial, WinRAR |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, CrashFree BIOS 3, EZ Flash 3, UEFI BIOS EZ Mode |
| Accessories | 2 x SATA cables, 1 x Wi-Fi antennas, 1 x I/O shield, 1 x M.2 rubber package, 1 x M.2 screw package, 1 x ACC Express activation key card, 1 x User guide |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | micro-ATX (24.4 cm x 24.4 cm / 9.6" x 9.6") |
