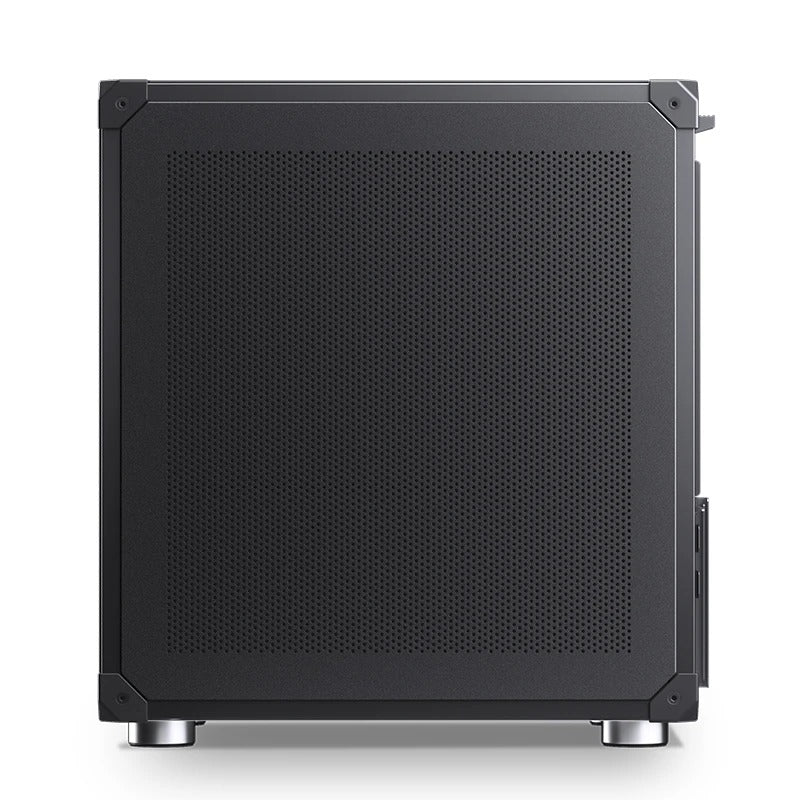

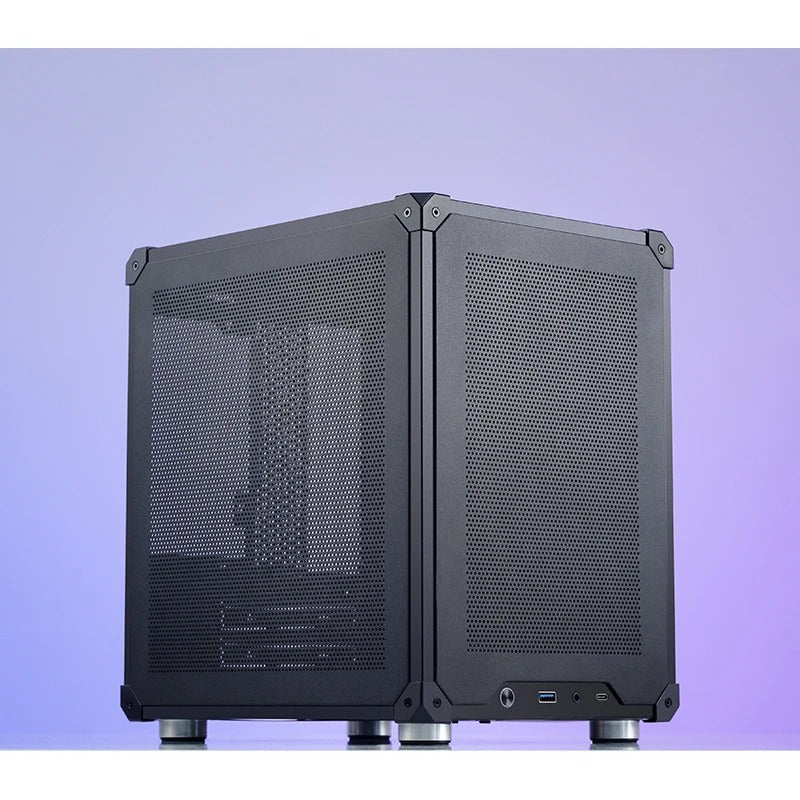

Jonsbo C6 Handle M-ATX Separated Cabinet Case (Black)
 |
 |
- Simple Compact Desktop Micro ATX PC case ,mesh chassis:Heat free-All sides in mesh, Front/Upper/Lower 3 fan positions
- Easy and quick disassembly design-Upper Cover/Side Panel Tool-free Open,Easier to build your PC,More convenient
- Compatible motherboard: ITX/M-ATX ( 2 project references) Drive Bay:3.5HDD *1 or 2.5SSD*2 Front interface:Type-C(20PIN)/USB3.0*1/AUDIO*1+MIC*1 (2 IN 1)
- ATX PSU :185mm,Cooler :75mm,GPU : 200-255mm Fan: Top plate 120mm*1 or 140mm*1 (Optional) ,Bottom 120mm or 140mm*1,Front 120mm*1or HDD
- Size :202mm(W) x266mm(D)x295.2mm(H) (Include the footpad)
Specifications:
| Model | C6 Black |
| Dimension | 202mm (W) × 266mm (D) × 295.2mm (H) |
| Material | 0.7mm Steel |
| Drive Bay | 2.5" SSD × 2 / 3.5" HDD × 1 |
| Motherboard | ITX / M-ATX |
| Front I/O Port | Type-C (20PIN) / USB3.0 × 1 / AUDIO × 1 + MIC × 1 (Headset + mic combined) |
| PSU Support | ATX ≤ 185mm |
| Max. CPU Cooler Height | ≤ 75mm |
| Max. Display Card Length | ≤ 200–255mm |
| Fan | Top: 120mm × 1 or 140mm × 1 Bottom: 120mm × 1 or 140mm × 1 Front: 120mm × 1 or HDD |
| Weight | Net 2.30kg |
$30.82
