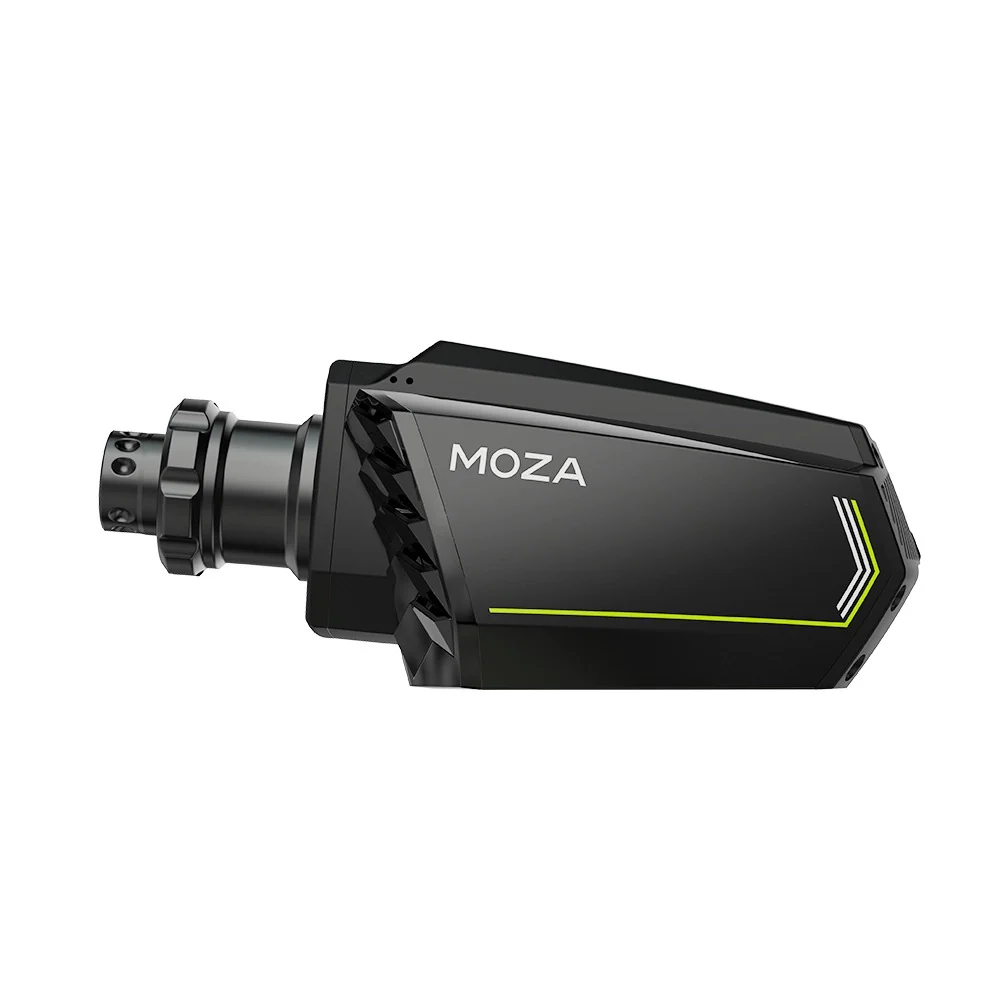

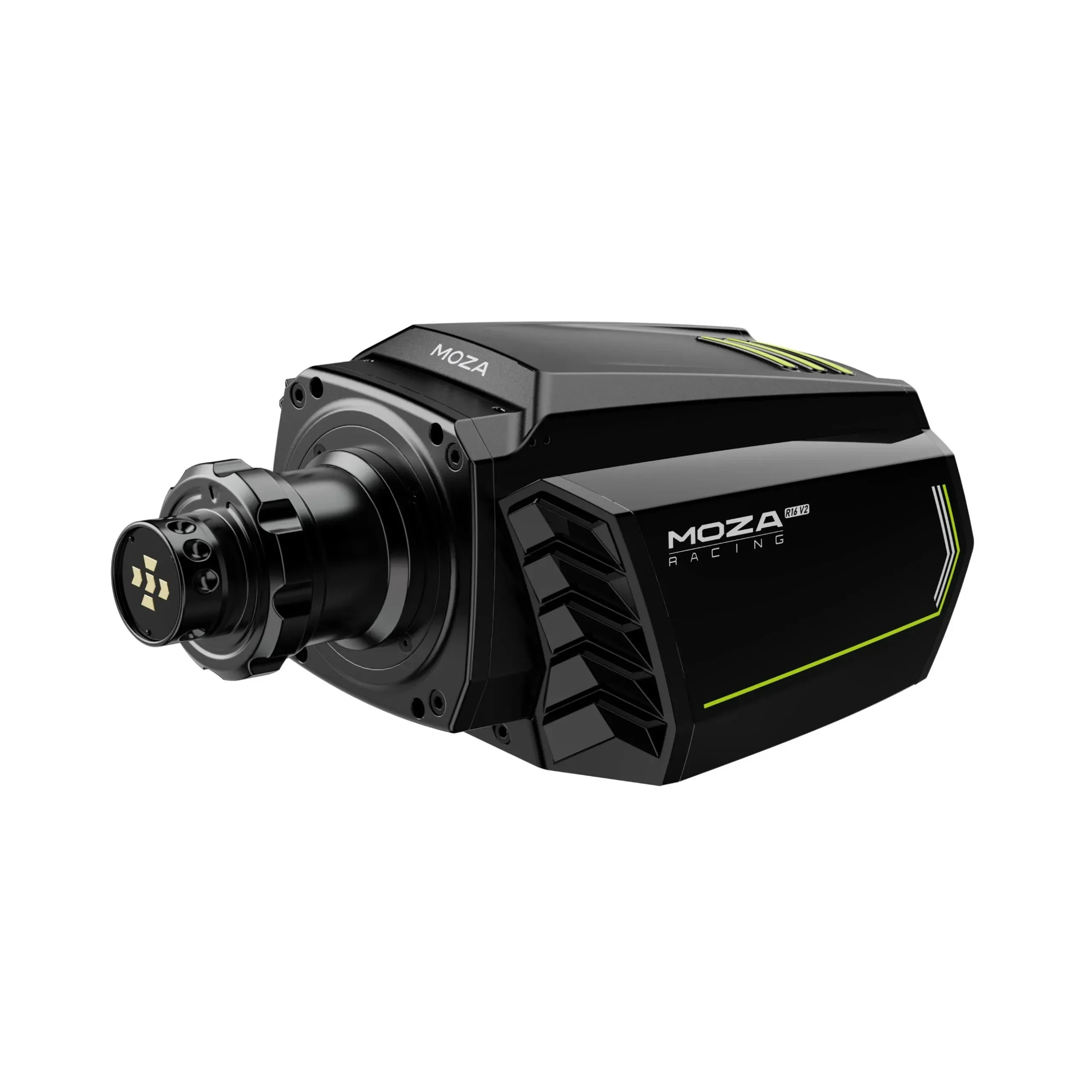

Moza Racing R16 V2 Direct Drive Wheel Base (RS084)

The MOZA R16 V2 delivers an uncompromising sim racing experience with 16Nm of direct drive torque, a 21-bit magnetic encoder, and a high-performance slanted pole servo motor. Built with an aviation-grade aluminum body and powered by the advanced NexGen 4.0 force feedback algorithm, the R16 V2 offers unmatched precision, smoothness, and realism for competitive sim racers.







Specification:

Platform	PC
FFB Drive System	Direct Drive
MOZA Pit House Control	Support
Max Steering Angle	90~2700°
Housing Material	Aviation Grade Aluminum Alloy
Color	Black
Peak Power	360W
Input voltage	110V~220V AC —>36V DC
USB Refresh Rate	1000Hz
V-shaped Struts	–
Encoder Resolution	21-Bit Magnetic Encoder with 280MHz High-Performance Processor
Indicator	YES
App Functions	Supported
Quick Release	Supported
Connection Ports	Power, USB, Pedal, Dash, Shifter, Handbrake, E-stop
Box Contents	R16 V2 Wheel Base, User manual, Warranty card, Power supply, USB cable, Toolkit
Mounting Method	Bottom mount
Side Mount Option	With optional side/front mount bracket
Desk Clamp	Optional
Emergency Stop Switch	Optional
Online Firmware Upgrade	Applicable
Firmware Update	Applicable
Dimension (L x W x H)（mm）	327*170*130
Weight	8.9kg
