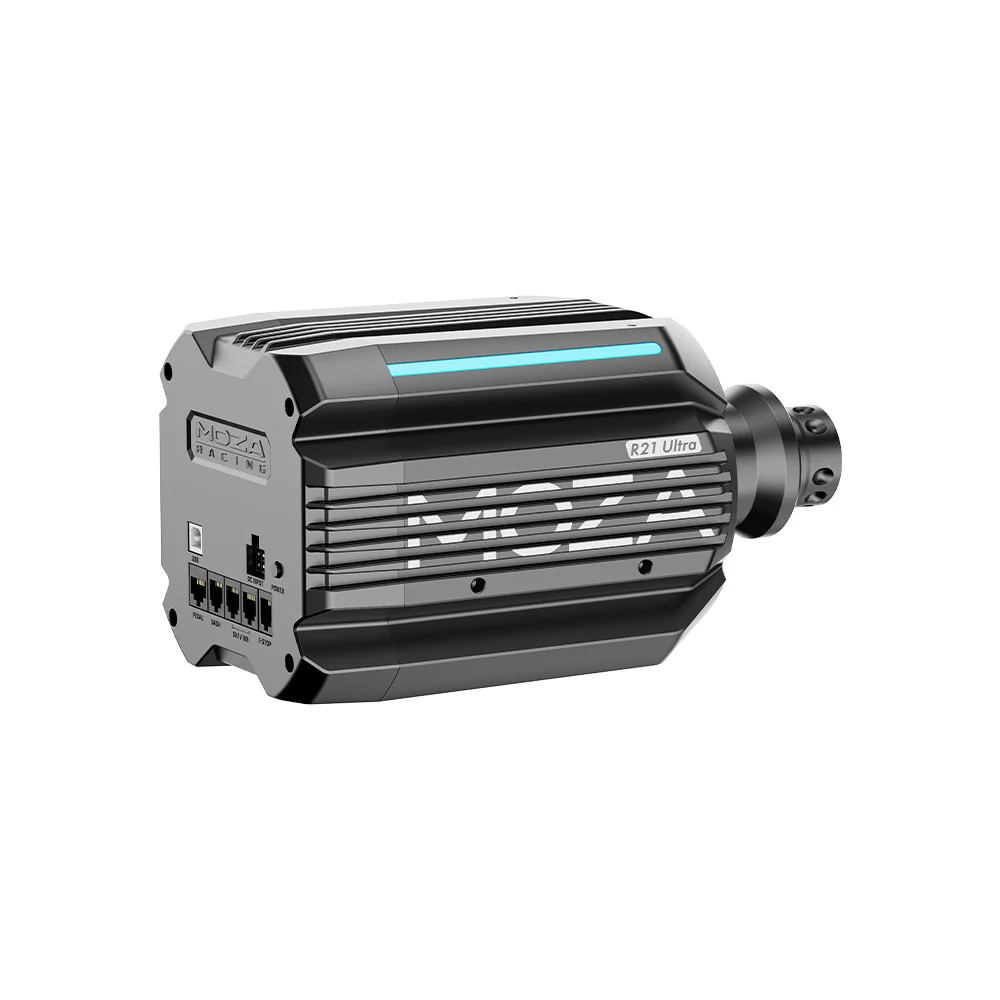

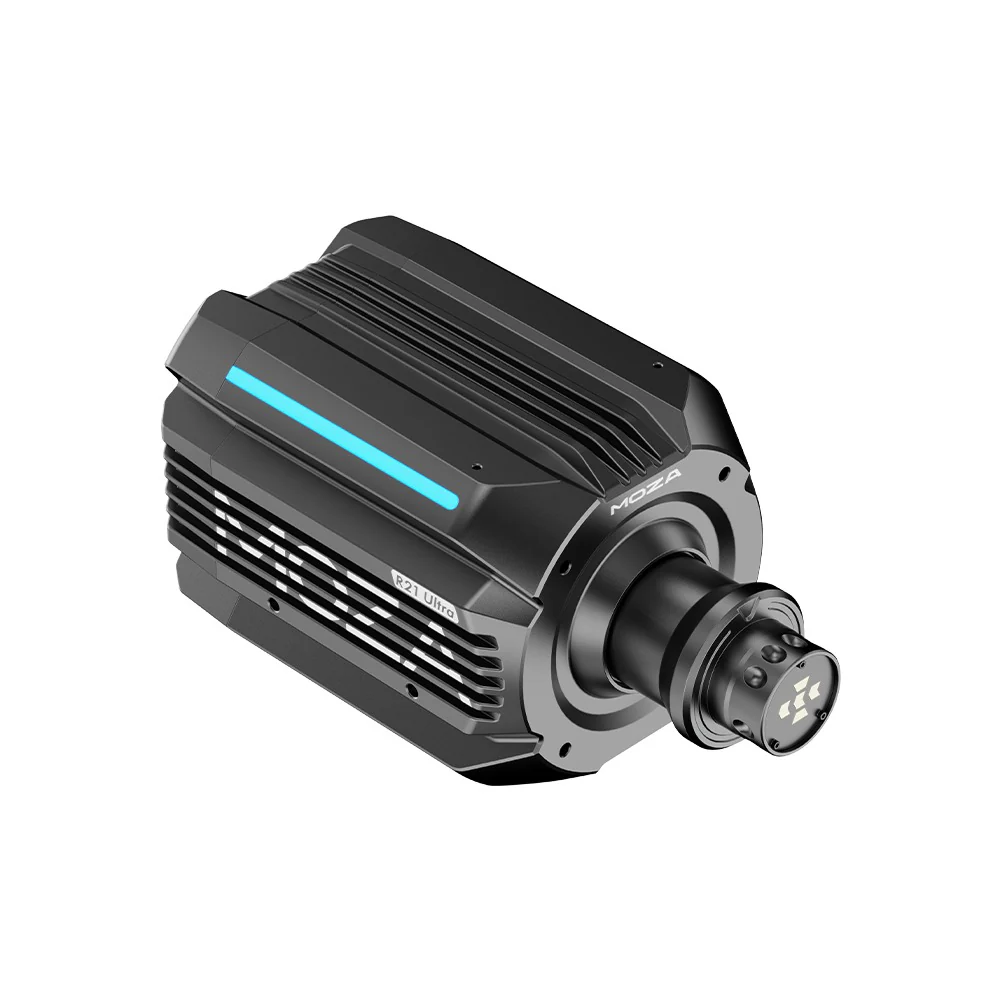

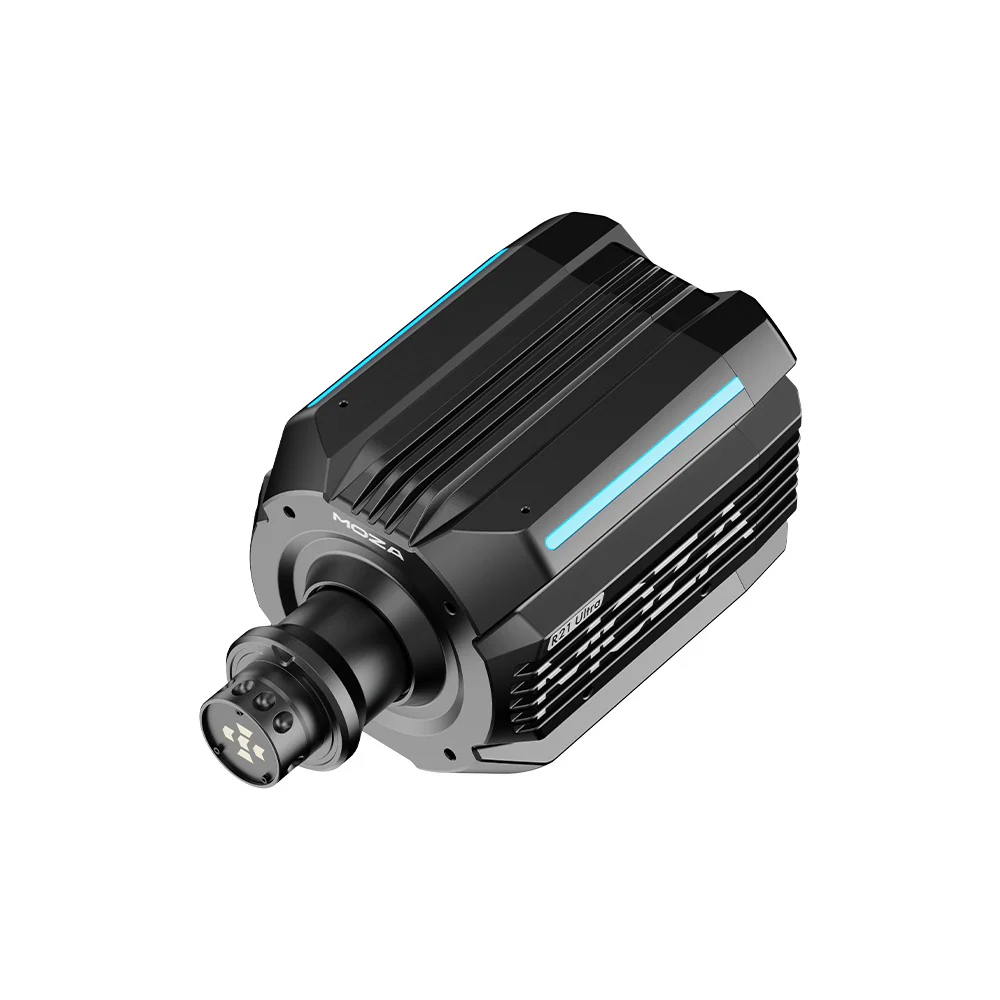

Moza Racing R21 Ultra Direct Drive Wheel Base (RS090)
Experience professional-grade sim racing with the MOZA R21 Ultra DD Wheel Base. Featuring a 21Nm sustained torque direct-drive motor, zero-cogging flat-wire technology, 21-bit magnetic encoder, and intelligent thermal management, the R21 delivers precise force feedback, smooth handling, and immersive realism for both endurance sessions and competitive racing.
Specifications:
| Platform | PC |
|---|---|
| Drive System | Direct Drive |
| Encoder Type | 21-bit Magnetic Encoder |
| Encoder Resolution | 2,097,152 PPR |
| Maximum Torque | 21 N·m |
| Rated Power | 360W |
| Input Voltage | 110V~220V AC → 36V DC |
| Housing Material | Aluminum Alloy |
| Rear Cover Material | Plastic |
| Coupler Material | Aluminum Alloy |
| RGB Light Strips | 2 |
| Mobile App Functions | Supported |
| Quick Release | Supported |
| USB Refresh Rate | 1000Hz |
| Ports | Power, PC, Pedals, Dashboard, Shifter, Handbrake, Emergency Stop Switch |
| Accessories | Power adapter, data cable, bolt kit, user manual, warranty card |
| Mounting Options | Front, side, and bottom mounting supported (optional adjustable bracket available) |
| Emergency Stop Switch | Optional |
| Dimensions | 248.8 × 140 × 135 mm |
| Weight | 9.0 kg |
Original: $634.18
-70%$634.18
$190.25Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Experience professional-grade sim racing with the MOZA R21 Ultra DD Wheel Base. Featuring a 21Nm sustained torque direct-drive motor, zero-cogging flat-wire technology, 21-bit magnetic encoder, and intelligent thermal management, the R21 delivers precise force feedback, smooth handling, and immersive realism for both endurance sessions and competitive racing.
Specifications:
| Platform | PC |
|---|---|
| Drive System | Direct Drive |
| Encoder Type | 21-bit Magnetic Encoder |
| Encoder Resolution | 2,097,152 PPR |
| Maximum Torque | 21 N·m |
| Rated Power | 360W |
| Input Voltage | 110V~220V AC → 36V DC |
| Housing Material | Aluminum Alloy |
| Rear Cover Material | Plastic |
| Coupler Material | Aluminum Alloy |
| RGB Light Strips | 2 |
| Mobile App Functions | Supported |
| Quick Release | Supported |
| USB Refresh Rate | 1000Hz |
| Ports | Power, PC, Pedals, Dashboard, Shifter, Handbrake, Emergency Stop Switch |
| Accessories | Power adapter, data cable, bolt kit, user manual, warranty card |
| Mounting Options | Front, side, and bottom mounting supported (optional adjustable bracket available) |
| Emergency Stop Switch | Optional |
| Dimensions | 248.8 × 140 × 135 mm |
| Weight | 9.0 kg |
