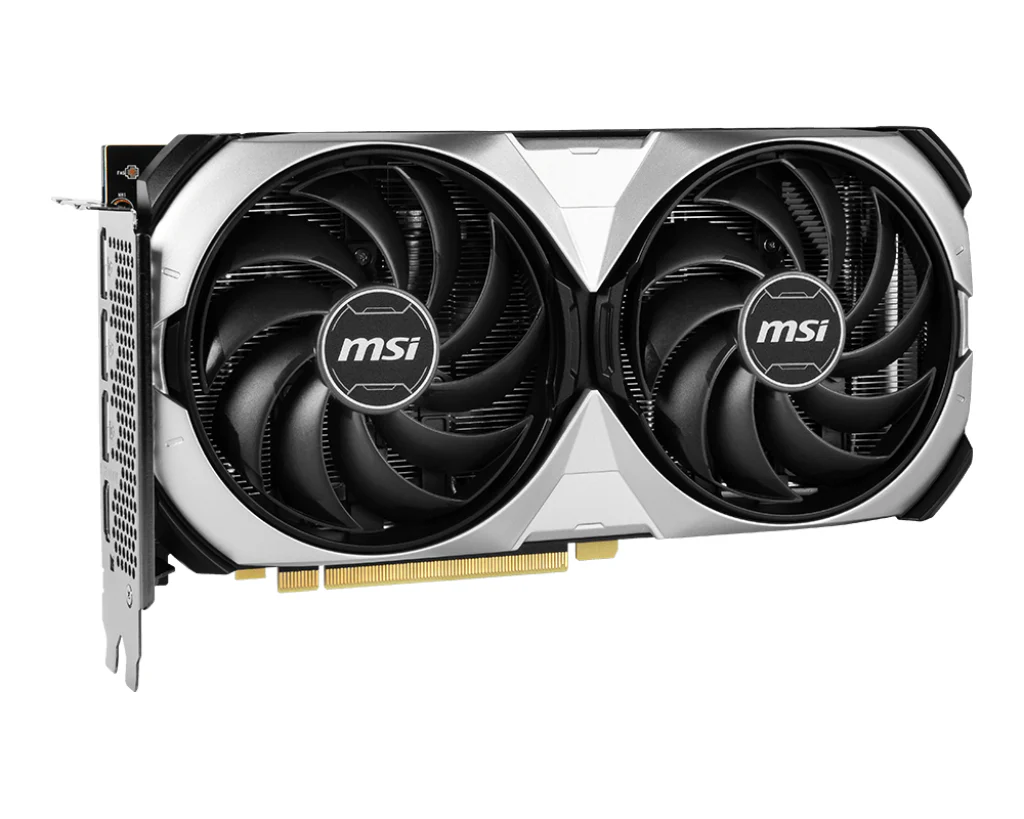

MSI GeForce RTX 4070 Super 12GB Ventus 2X OC GDDR6X Graphics Card

Get equipped for stellar gaming and creating with the NVIDIA^® GeForce RTX™ 4070. It’s built with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience fast ray tracing, AI-accelerated performance with DLSS 3, new ways to create, and much more.

Boost Clock / Memory Speed

• 2505 MHz / 21 Gbps
• 12GB GDDR6X
• DisplayPort x 3 (v1.4a)
  HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)

Dual Fan Thermal Design

• TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
• Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
• Zero Frozr: The fans completely stop when temperatures are relatively low, eliminating all noise.

Reinforcing Backplate

• The reinforcing backplate features a flow-through design that provides additional ventilation.

MSI Center

• The exclusive MSI Center software lets you monitor, tweak, and optimize MSI products in real-time.

Specifications:

MODEL NAME	GeForce RTX™ 4070 VENTUS 2X 12G OC
GRAPHICS PROCESSING UNIT	NVIDIA® GeForce RTX™ 4070
INTERFACE	PCI Express® Gen 4
CORE CLOCKS	Extreme Performance: 2520 MHz (MSI Center) Boost: 2505 MHz
CUDA® CORES	5888 Units
MEMORY SPEED	21 Gbps
MEMORY	12GB GDDR6X
MEMORY BUS	192-bit
OUTPUT	DisplayPort x 3 (v1.4a) HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)
HDCP SUPPORT	Y
POWER CONSUMPTION	200 W
POWER CONNECTORS	8-pin x 1
RECOMMENDED PSU	650 W
CARD DIMENSION (MM)	242 x 125 x 43 mm
WEIGHT (CARD / PACKAGE)	651 g / 947 g
DIRECTX VERSION SUPPORT	12 Ultimate
OPENGL VERSION SUPPORT	4.6
MAXIMUM DISPLAYS	4
G-SYNC® TECHNOLOGY	Y
DIGITAL MAXIMUM RESOLUTION	7680 x 4320
