MSI GeForce RTX 4080 Super 16GB Ventus 3x OC GDDR6X Graphics Card

GeForce RTX 4080 SUPER 16G VENTUS 3X OC

WITH DLSS 3

Supercharge your PC with the NVIDIA^® GeForce RTX™ 4080 SUPER. Bring your games and creative projects to life with accelerated ray tracing and AI-powered graphics. It’s powered by the ultra-efficient NVIDIA Ada Lovelace architecture and 16GB of super-fast G6X memory.

Boost Clock / Memory Speed

• 2580 MHz / 23 Gbps
• 16GB GDDR6X
• DisplayPort x 2 (v1.4a)
  HDMI™ x 2 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)

Triple Fan Thermal Design

• TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
• Airflow Control: Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.
• Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
• Zero Frozr:The fans completely stop when temperatures are relatively low, eliminating all noise.

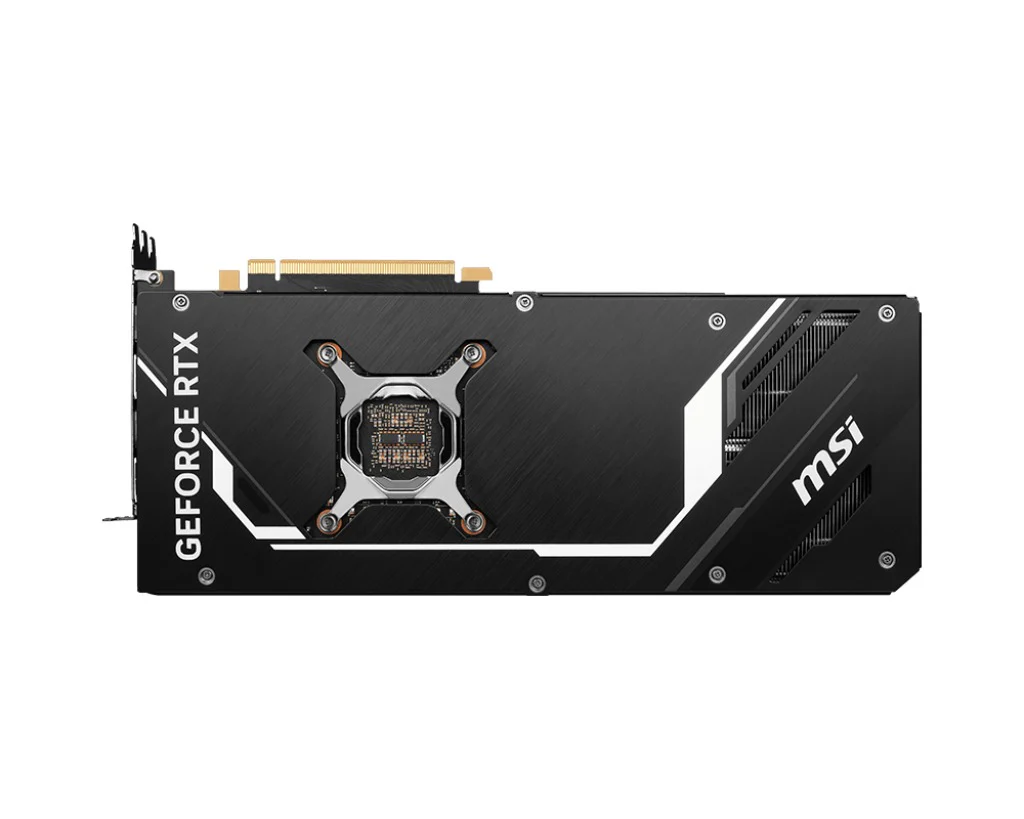

Metal Backplate

• A sturdy brushed aluminum backplate features a flow-through design that provides additional ventilation.

SPECIFICATIONS

Model Name	GeForce RTX™ 4080 SUPER 16G VENTUS 3X OC
Graphics Processing Unit	NVIDIA® GeForce RTX™ 4080 SUPER
Interface	PCI Express® Gen 4
Core Clocks	Extreme Performance: 2595 MHz (MSI Center) Boost: 2580 MHz
CUDA® CORES	10240 Units
Memory Speed	23 Gbps
Memory	16GB GDDR6X
Memory Bus	256-bit
Output	DisplayPort x 2 (v1.4a) HDMI™ x 2 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)
HDCP Support	Y
Power consumption	320 W
Power connectors	16-pin x1
Recommended PSU	750 W
Card Dimension (mm)	322 x 136 x 62 mm
Weight (Card / Package)	1543 g / 2147 g
DirectX Version Support	12 Ultimate
OpenGL Version Support	4.6
Maximum Displays	4
G-SYNC® technology	Y
Digital Maximum Resolution	7680 x 4320
