MSI GeForce RTX 5060 Ti 8GB GDDR7 Ventus 2X Plus Graphics Card
GeForce RTX™ 5060 Ti 8G VENTUS 2X OC PLUS
- Powered by the NVIDIA Blackwell architecture and DLSS 4
-
Core Clock:
Extreme Performance: 2617 MHz (MSI Center)
Boost: 2602 MHz - STORMFORCE FAN: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
- Heat Pipes designed for efficient heat transfer, the heat pipes effectively draw thermal energy away from the GPU, improving overall cooling performance.

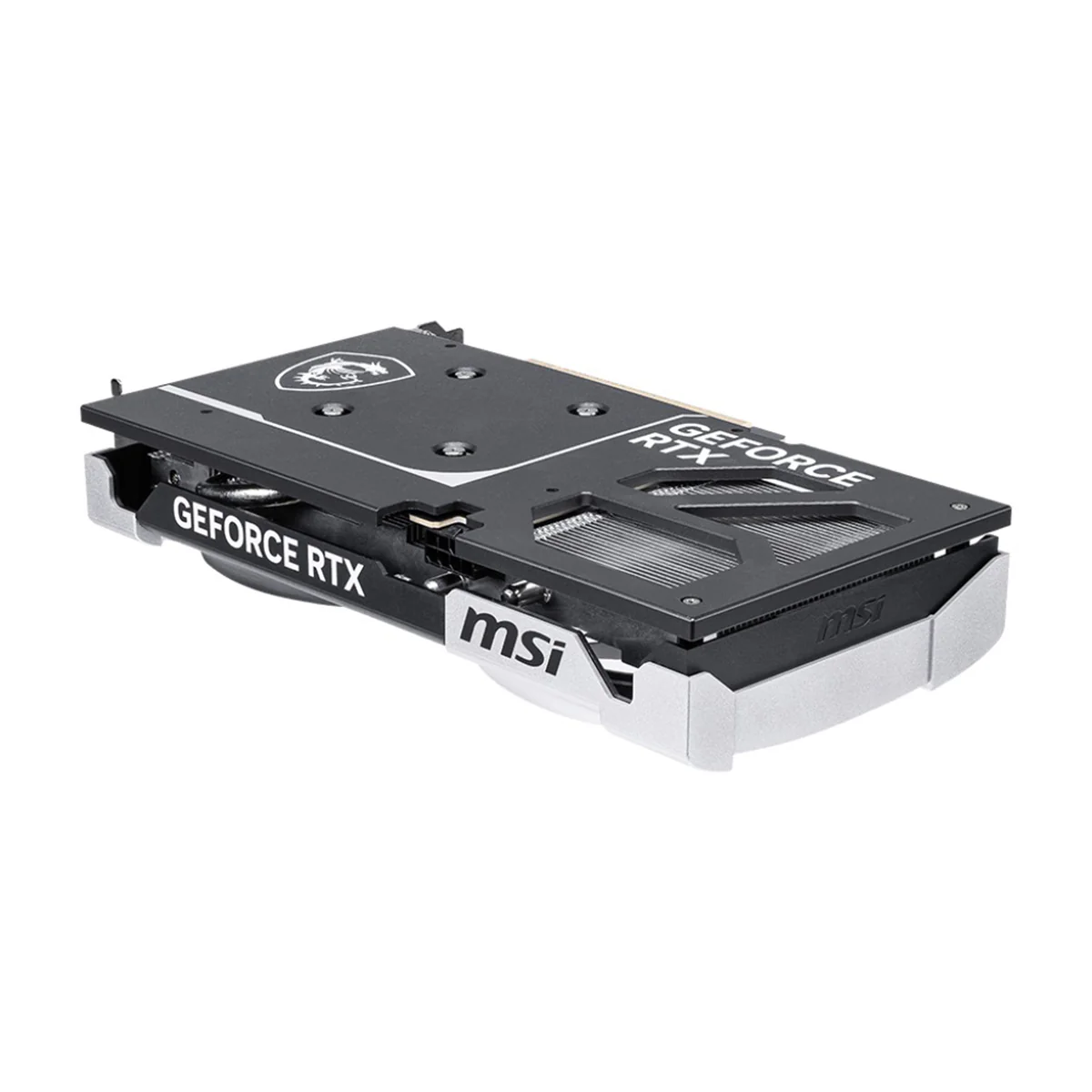

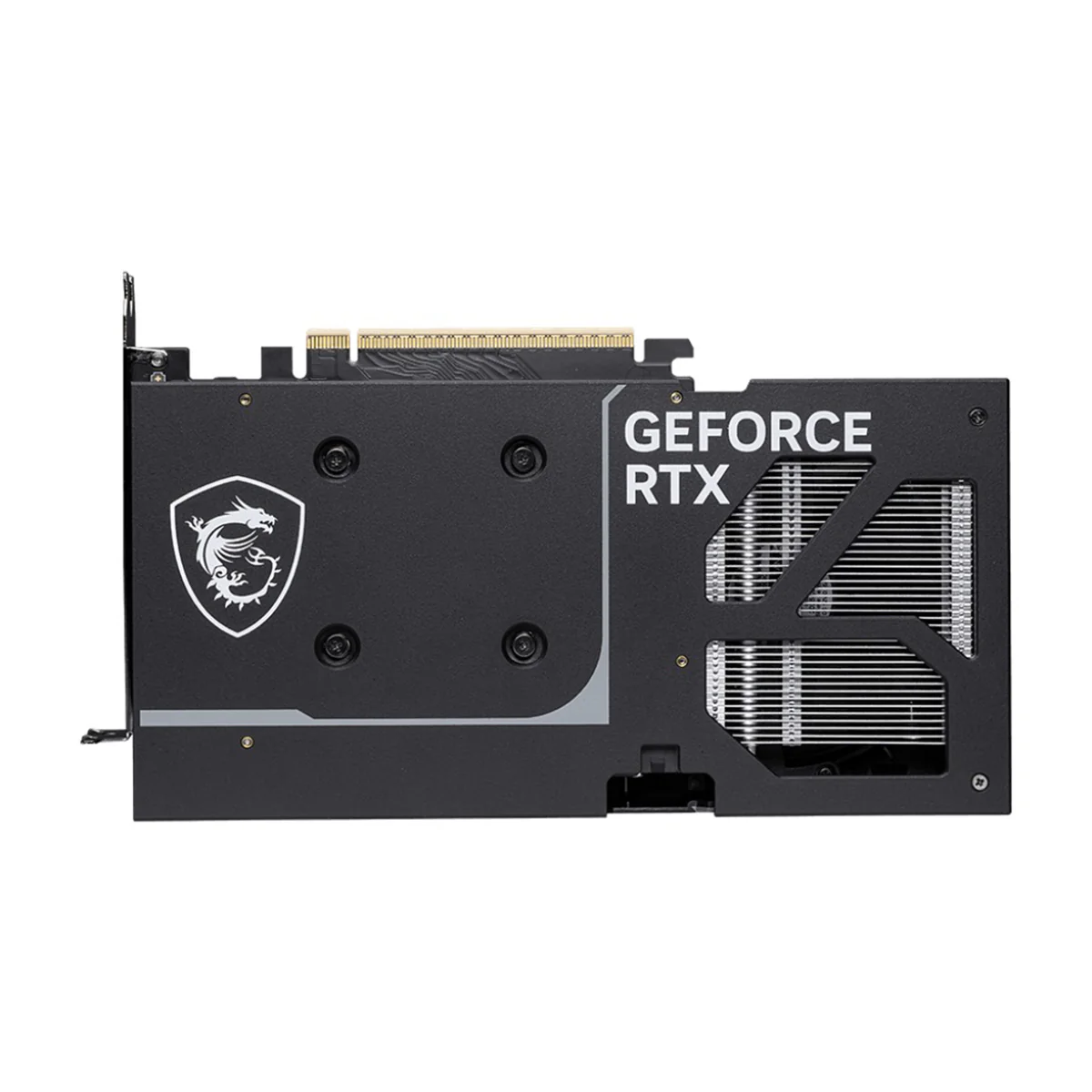

- Reinforcing Backplate: The reinforcing backplate features an airflow vent that allows exhaust air to directly pass through.
- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.
Specifications:
| Marketing Name | GeForce RTX™ 5060 Ti 8G VENTUS 2X OC PLUS |
| Model Name | G506T-8V2CP |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 5060 Ti |
| Interface | PCI Express® Gen 5 x16 (uses x8) |
| Core Clocks | Extreme Performance: 2617 MHz Boost: 2602 MHz |
| CUDA® CORES | 4608 Units |
| Memory Speed | 28 Gbps |
| Memory | 8GB GDDR7 |
| Memory Bus | 128-bit |

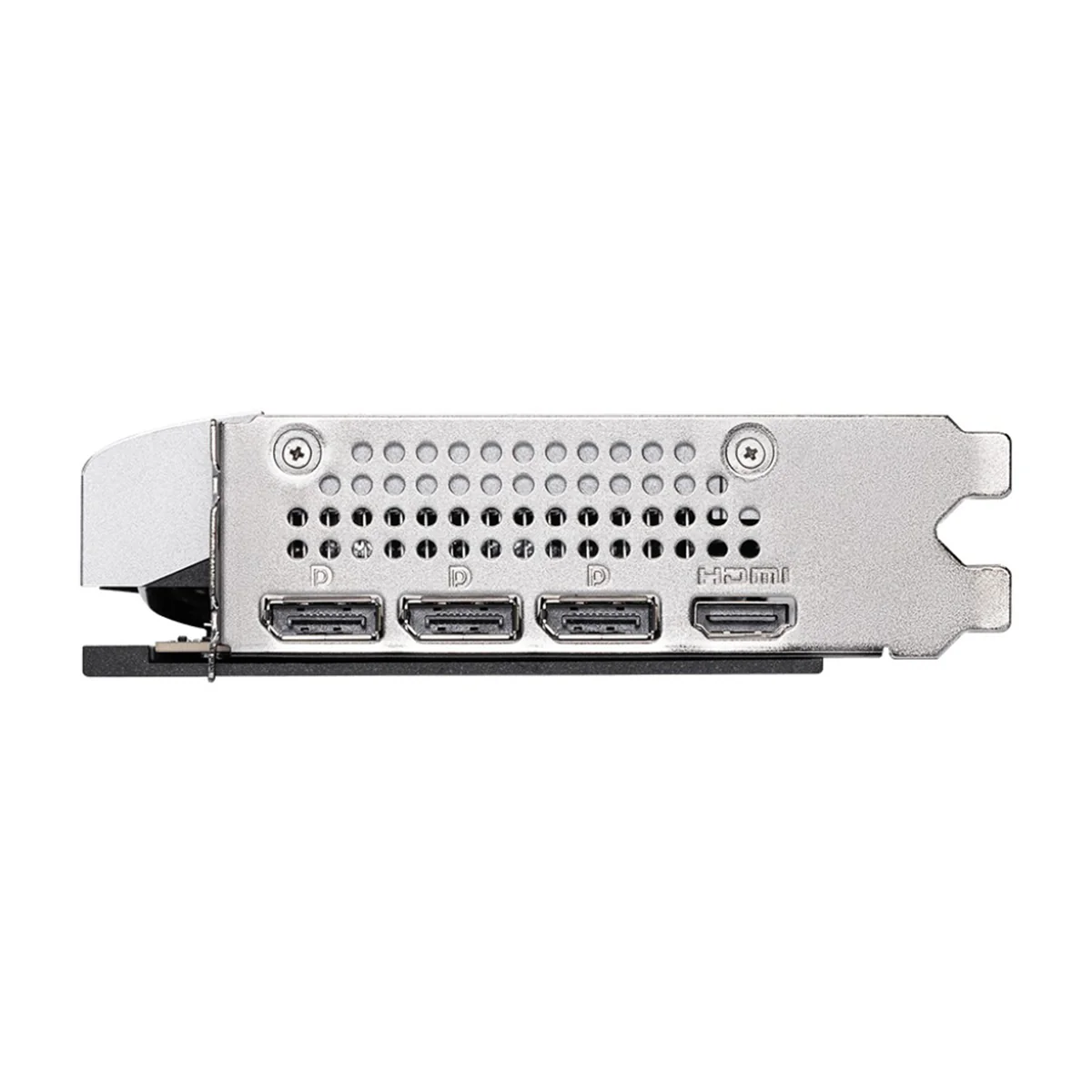

| Output | DisplayPort x 3 (v2.1b) HDMI™ x 1 (HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) |
| HDCP Support | Yes |
| Power Consumption | 180 W |
| Power Connectors | 8-pin x1 |
| Recommended PSU | 600 W |
| Card Dimension (mm) | 227 x 126 x 41 mm |
| Weight (Card / Package) | 573 g / 834 g |
| DirectX Version Support | 12 Ultimate |
| OpenGL Version Support | 4.6 |
| Maximum Displays | 4 |
| G-SYNC® Technology | Yes |
| Digital Maximum Resolution | 7680 x 4320 |
$478.05
MSI GeForce RTX 5060 Ti 8GB GDDR7 Ventus 2X Plus Graphics Card—
$478.05
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
GeForce RTX™ 5060 Ti 8G VENTUS 2X OC PLUS
- Powered by the NVIDIA Blackwell architecture and DLSS 4
-
Core Clock:
Extreme Performance: 2617 MHz (MSI Center)
Boost: 2602 MHz - STORMFORCE FAN: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
- Heat Pipes designed for efficient heat transfer, the heat pipes effectively draw thermal energy away from the GPU, improving overall cooling performance.
- Reinforcing Backplate: The reinforcing backplate features an airflow vent that allows exhaust air to directly pass through.
- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.
Specifications:
| Marketing Name | GeForce RTX™ 5060 Ti 8G VENTUS 2X OC PLUS |
| Model Name | G506T-8V2CP |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 5060 Ti |
| Interface | PCI Express® Gen 5 x16 (uses x8) |
| Core Clocks | Extreme Performance: 2617 MHz Boost: 2602 MHz |
| CUDA® CORES | 4608 Units |
| Memory Speed | 28 Gbps |
| Memory | 8GB GDDR7 |
| Memory Bus | 128-bit |
| Output | DisplayPort x 3 (v2.1b) HDMI™ x 1 (HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) |
| HDCP Support | Yes |
| Power Consumption | 180 W |
| Power Connectors | 8-pin x1 |
| Recommended PSU | 600 W |
| Card Dimension (mm) | 227 x 126 x 41 mm |
| Weight (Card / Package) | 573 g / 834 g |
| DirectX Version Support | 12 Ultimate |
| OpenGL Version Support | 4.6 |
| Maximum Displays | 4 |
| G-SYNC® Technology | Yes |
| Digital Maximum Resolution | 7680 x 4320 |
