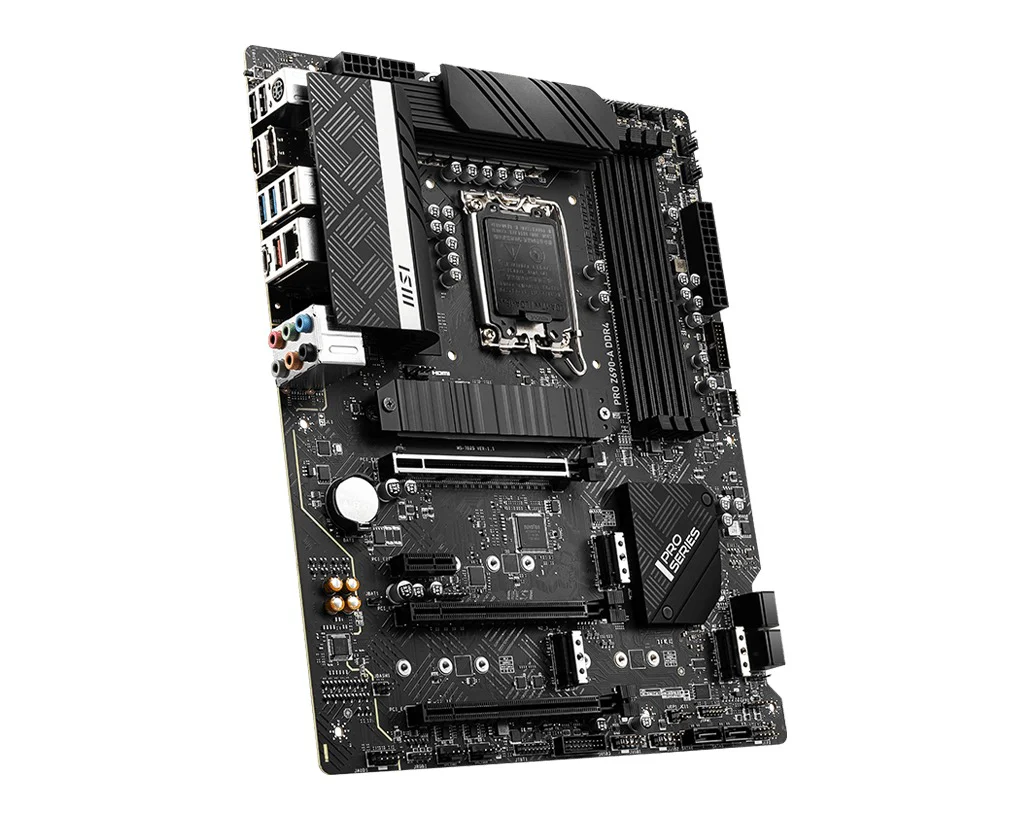

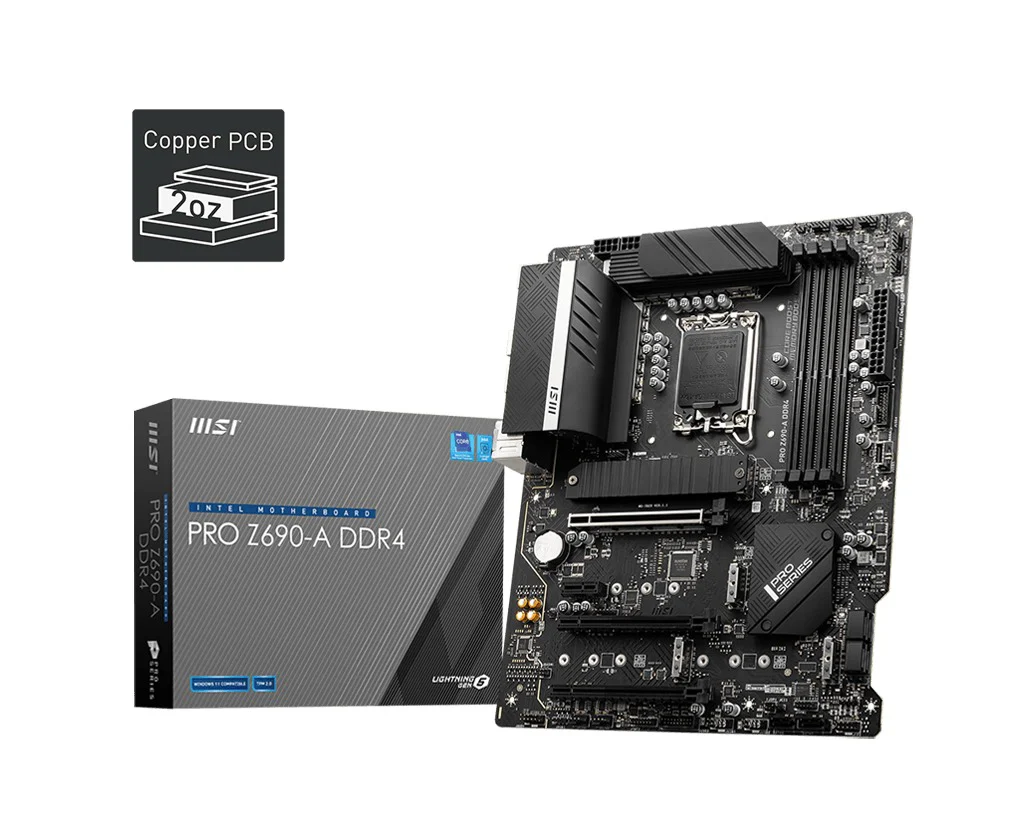

MSI PRO Z690-A DDR4 Intel Motherboard



PRO Z690-A DDR4

• Supports 12th/ 13th Gen Intel^® Core™, Pentium^® Gold and Celeron^® processors for LGA 1700 socket
• Supports DDR4 Memory, up to 5200+(OC) MHz
• Lightning Fast Experience: PCIe 5.0 slots, Lightning Gen4 x4 M.2, USB 3.2 Gen 2x2
• Premium Thermal Solution: Extended Heatsink Design, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high performance system and non-stop works
• 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
• Audio Boost: Reward your ears with studio grade sound quality
• High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
• Multi-GPU: With Steel armor PCI-E slots. Supports AMD Crossfire™

SPECIFICATIONS:

SOCKET	1700
CHIPSET	Intel® Z690 Chipset
MEMORY CHANNEL	Dual
DIMM SLOTS	4
MAX MEMORY (GB)	128
PCI-E X16	3
PCI-E X1	1
SATAIII	6
M.2 SLOT	4
RAID	0/1/5/10
TPM (HEADER)	1
USB 3.2 PORTS (FRONT)	1(Gen 2, Type C), 4(Gen 1, Type A)
USB 3.2 PORTS (REAR)	1(Gen 2x2, Type C), 1(Gen 2, Type A), 2(Gen 1, Type A)
USB 2.0 PORTS (FRONT)	4
USB 2.0 PORTS (REAR)	4
AUDIO PORTS (REAR)	Realtek® ALC897/ALC892 Codec
DISPLAYPORT	1
HDMI	1
DIRECTX	12
CROSSFIRE	Y
OPERATING SYSTEM	Support for Windows® 11 64-bit, Windows® 10 64-bit
FORM FACTOR	ATX
DIMENSION	12 in. x 9.6 in. (30.5 cm x 24.4 cm)
