Sama P1000 1000W 80+ Platinum ATX 3.1 PCIe 5.1 Ready Fully Modular Power Supply with Braided Pattern Cables (Black, White)
P1000
The P series is a fully modular power supply that offers flexible cable management for a cleaner, more organized build. It is 80 PLUS Platinum certified for high energy efficiency and complies with the ATX 3.1 standard for stable power delivery. Equipped with a native PCIe 5.1 connector and cable, it is fully compatible with the latest high-performance graphics cards, ensuring future-proof reliability.
Specifications
| Product Name | P1000 |
|---|---|
| Model Number | XPH1000-AP |
| Output Power | 1000W |
| Form Factor | ATX 3.1 |
| Modularity | Fully Modular |
| Dimensions | 150 x 150 x 86mm (L×W×H) |
| 80PLUS Certification | Platinum |
| Efficiency | >92% @ Typical Load (50% Load) |
| AC Input | 100-240Vac |
| Fan Size | 140mm |
| Fan Bearing | FDB |
| Capacitors | 100% Japanese Capacitors |
| Operating Temperature | 0-50°C |
| Protection | OTP / OCP / OPP / SCP / OVP / UVP / SIP / NLO |
| Safety | CE / TUV / cTUVus / FCC / ICES / UKCA / EAC |
| Environmental Compliance | RoHS / WEEE / ErP 2014 |
| MTBF | 100,000 Hours |

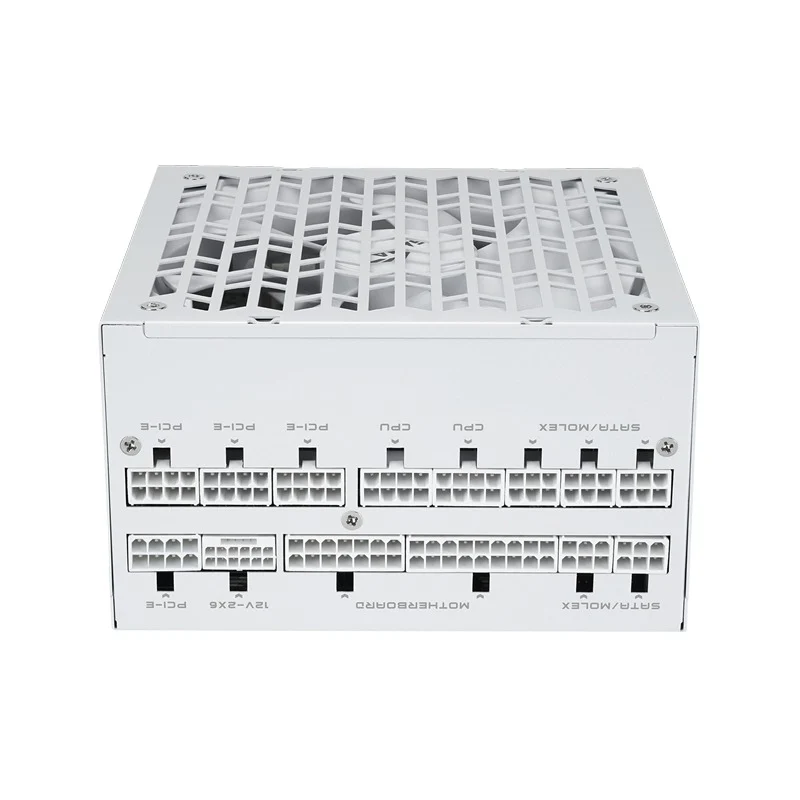

| Connectors | MB ATX 24 Pin x 1 CPU (4+4) Pin x 2 PCI-E (6+2) Pin x 3 12V-2x6 (12+4) Pin x 1 SATA x 8 Molex 4 Pin x 4 |

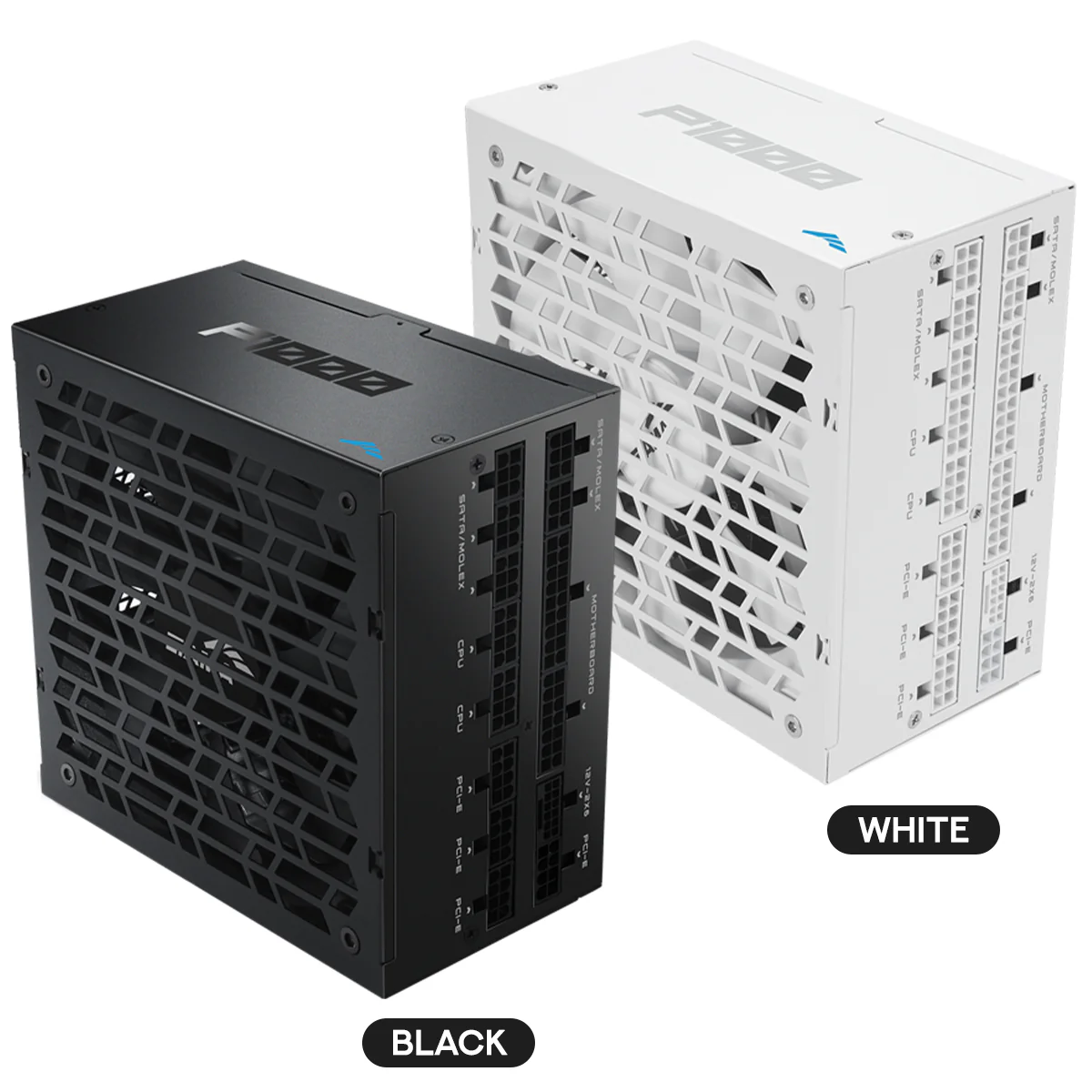

Select Power Supply Color
From $103.27
Sama P1000 1000W 80+ Platinum ATX 3.1 PCIe 5.1 Ready Fully Modular Power Supply with Braided Pattern Cables (Black, White)—
$103.27
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
P1000
The P series is a fully modular power supply that offers flexible cable management for a cleaner, more organized build. It is 80 PLUS Platinum certified for high energy efficiency and complies with the ATX 3.1 standard for stable power delivery. Equipped with a native PCIe 5.1 connector and cable, it is fully compatible with the latest high-performance graphics cards, ensuring future-proof reliability.
Specifications
| Product Name | P1000 |
|---|---|
| Model Number | XPH1000-AP |
| Output Power | 1000W |
| Form Factor | ATX 3.1 |
| Modularity | Fully Modular |
| Dimensions | 150 x 150 x 86mm (L×W×H) |
| 80PLUS Certification | Platinum |
| Efficiency | >92% @ Typical Load (50% Load) |
| AC Input | 100-240Vac |
| Fan Size | 140mm |
| Fan Bearing | FDB |
| Capacitors | 100% Japanese Capacitors |
| Operating Temperature | 0-50°C |
| Protection | OTP / OCP / OPP / SCP / OVP / UVP / SIP / NLO |
| Safety | CE / TUV / cTUVus / FCC / ICES / UKCA / EAC |
| Environmental Compliance | RoHS / WEEE / ErP 2014 |
| MTBF | 100,000 Hours |
| Connectors | MB ATX 24 Pin x 1 CPU (4+4) Pin x 2 PCI-E (6+2) Pin x 3 12V-2x6 (12+4) Pin x 1 SATA x 8 Molex 4 Pin x 4 |
